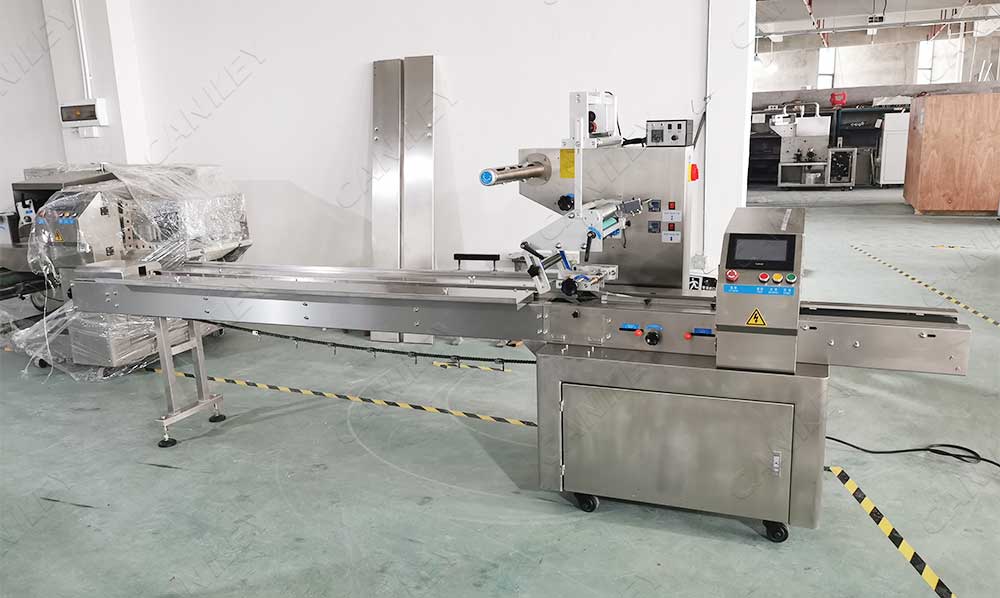

Automatic Fruit Snack Bar Packing Machine

Model CKZS320
Film width Max 320mm
Bag width 50-160mm
Product height Max 45mm
packing speed 40-230bags/min
Machine size 3370*720*1450mm
Weight 900kg

Using simple methods to complete fast packaging is a requirement of many snack bar manufacturers factory. The snack bar packaging machines produced by our company are controlled by single-servo or double-servo motors. Compared with fruit bar packing machines controlled by frequency conversion motors, they are more intelligent, have higher packaging precision, wider adjustable range, more precise control, lower rejection rate and more stability is better.

Snack Bar Packaging Machine Features:

  • High packaging efficiency, stable performance, convenient operation and maintenance, and low failure rate.
  • It can run continuously for a long time.
  • The sealing performance is good, and the packaging effect is beautiful.
  • And can print the production date synchronously.
  • Affordable. (About $6500-$12000. It is related to the model of the machine)
  • Wide range of packaging.

fruit bar packing machine

Fruit Bar Packing Machine Operating Procedures:

  1. Turn on the power switch in the electric control box, turn on the main power air switch, and the power indicator light is on.
  2. Turn on each heater switch of the packaging machine, the heating indicator light is on, and it usually takes 20 minutes to reach the set temperature.
  3. Install the packaging film, jog to make the packaging film pass through the two rollers, then open the rubber pressing roller control handle, pull it through the bag maker to the lower conveyor belt, and close the handle.
  4. Press the start button to start the equipment, cut 4-5 bags, observe the forming condition of the packaging film, measure the bag length, and observe the automatic tracking condition.
  5. Adjust the cutter tracking position.
  6. Supply the snack bar to the feed conveyor, close the clutch, manually pull the conveyor to a proper position, and close the clutch.
  7. The machine will automatically complete the snack bar packaging process.

About After-sales Service:

  • Debug service: Before the snack bar packing machine is shipped, we will complete the debugging of the machine, conduct a test run, and send the test machine video to the customer. And we accept third party inspection.
  • If you encounter problems during use, please notify us in time, we will reply within 2 hours and give solutions within 24 hours.
  • The warranty period of the machine is 1 year. During the warranty period, if there is a problem with the part under non-artificial circumstances, we will provide it for free.
